Product Details:
|
| Type: | Jammer Module | Chipset: | GaN High Power Chip |
|---|---|---|---|
| Supplier Type: | Manufacturer | Application: | Drone FPV Jammer System |
| Product Name: | FPV Jammer Module | Frequency: | 5725MHz-5850MHz |
| Power: | 43dbm | Interface: | SMA-F |
| Current: | 2.0A @24V, 43dBm | Power Socket: | 15cm Red/black Wire |
| Net Size: | 134*53*17mm | Net Weight: | 0.26Kg |
| Voltage: | 28V | Working Band: | 200MHz -6100MHz（customized） |
| Output Power: | 10W 20W 30W 40W 50W 60W 100W（customized） | ||
| Highlight: | 5.8GHz Signal Jamming Module,5725MHz 5850MHz Signal Jamming Module |
||
The 50W drone FPV jammer independently developed by ACASOM is mainly used to shield drone and FPV, and the shielding distance is 1-2km. This product use the latest generation of power devices-gallium nitride(GAN), which uses a ceramic package and a copper gold-plated substrate process. In addition, the shell of our product uses the nickel plating process of aviation aluminum box, which greatly provides the service life of the product. This series of products have 200M, 300, 400M, 500M, 600M, 700M, 800M, 900M, 1000M, 1.2G, 1.3G, 1.4G, 1.5G,1.7G, 2.2G, 2.4G, 3.5G, 4.8G, 5.0G, 5.2G, 5.7G, 5.8G, 6.1G and other frequency bands. The output power of this series of products is 10W, 20W, 30W, 40W, 50W, 60W, 100W and other power levels.
| No. | Items | Specifications |
| 1 | Frequency range | 5725MHz-5850MHz |
| 2 | Operating Voltage | 24V |

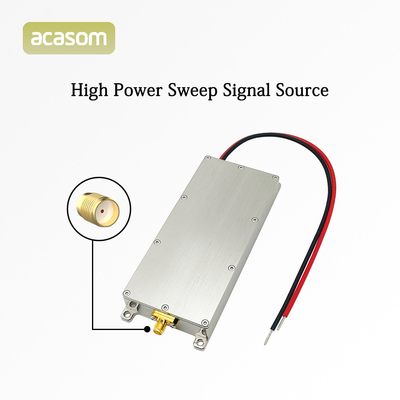

| 3 | RF PORT | SMA-F |
| 4 | Output Power | 43dBm |
| 5 | Current | 2.0A @24V, 43dBm |
| 6 | Efficiency | 48%@43dBm |
| 7 | LED State | Red |
| 8 | Operating Temperature | -30℃～85℃ |
| 9 | Storage Temperature | -40℃～150℃ |
| 10 | Operating Humidity | ＜95%RH |
| 11 | Flatness | ±0.5dB |

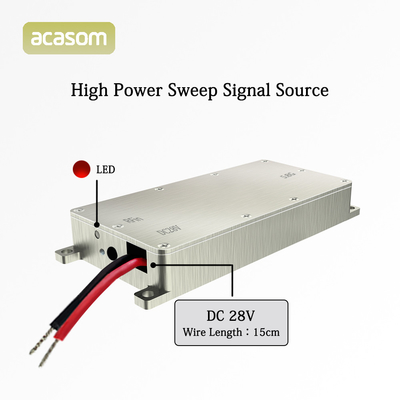

| 12 | Power Socket | 15cm red/black wire |

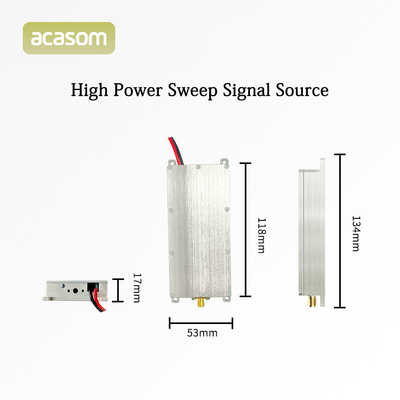

| 14 | Shell Size | 134*53*17mm |
| 15 | Net Weight | 0.26Kg |
