Product Details:
|
| Type: | RF Module | Chipset: | Self Designed PCBA |
|---|---|---|---|
| Supplier Type: | Wholesale And Engineering | Application: | Home; Hospital |
| Frequency Range: | 0.9;1.6;2.4;5.2;5.8 | Port Connectors: | SMA-Female ;SMA-MALE |
| VSWR: | <1.5:1 | Polarization: | Horizontal Or Vertical |
| Horizontal Beamwidth: | 28° | Vertical Beamwidth: | 25° |
| Nominal Impedance: | 50 Ohms | F/B Ratio: | >18 DB |
| Max Input Power: | 50 W | Gain: | 8db;13db |
| Highlight: | FPV Directional Antenna Easy Setup,5850MHz FPV Directional Antenna,5850MHz fpv drone antenna |
||
Maximize Your Drone Performance Easy Setup With 5850MHz High Gain Directional Antenna
1.Descriptions
Maximize Your Drone Performance Easy Setup With 5850MHz High Gain Directional Antenna
This 5850MHz high-gain directional antenna is designed to maximize drone performance and provide excellent signal transmission capabilities. Its easy-to-setup design allows users to quickly install and enhance the flight experience, ensuring a stable signal connection in all flight conditions.
2.Product Specifications
| No. | Items | Parameter |
| 1 | Frequency range | 1560-1620MHz；900MHz |
| 2 | Gain | 8 dBi |
| 3 | VSWR | <1.5:1 |
| 4 | Polarization | 28° |
| 5 | Vertical Beamwidth | 25° |
| 6 | Nominal Impedance | 50 Ohms |
| 7 | Port Connectors | SMA-Female |
| 8 | F/B Ratio | >18 dB |
| 9 | Max Input Power: | 50 W |
| 10 | Lightning Protection | DC Ground |
| No. | Items | Parameter |
| 1 | 1.6GHz Frequency range | 2.4;5.2;5.8GHz |
| 2 | Gain | 13 dBi |
| 3 | VSWR | <1.5:1 |
| 4 | Polarization | 28掳 |
| 5 | Vertical Beamwidth | 25掳 |
| 6 | Nominal Impedance | 50 Ohms |
| 7 | Port Connectors | SMA-Female |
| 8 | F/B Ratio | >18 dB |
| 9 | Max Input Power: | 50 W |
| 10 | Lightning Protection | DC Ground |
3.Product Advantages
4.Product details

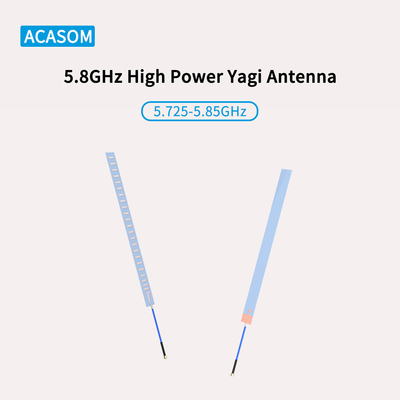

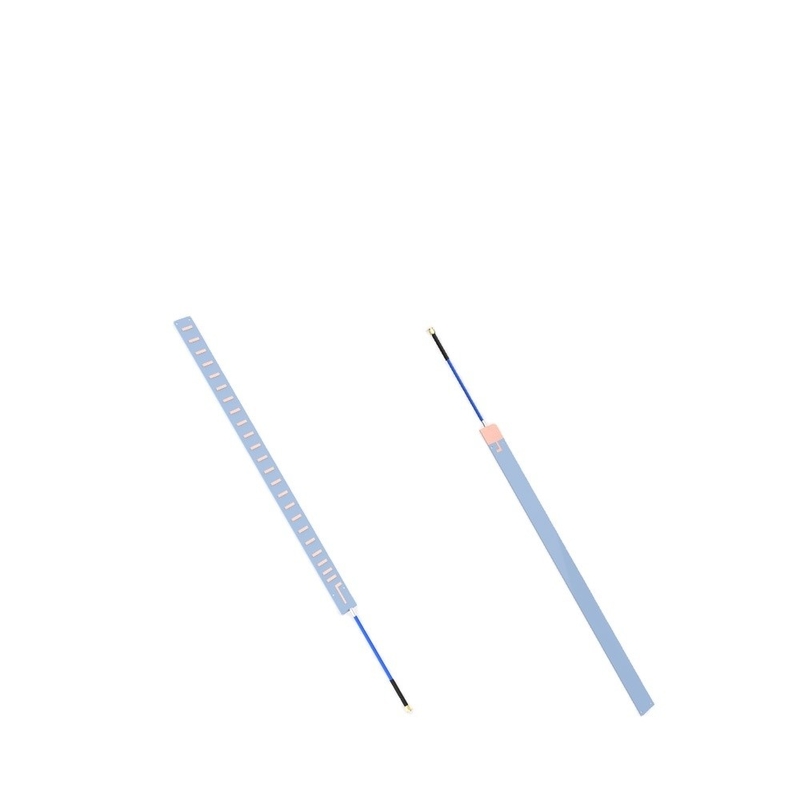

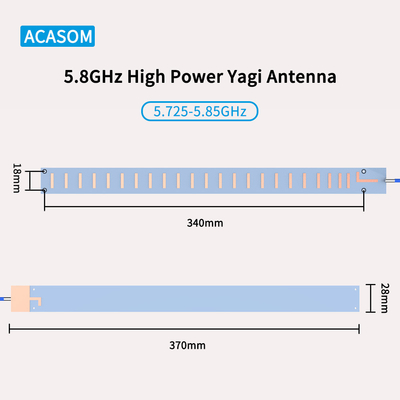

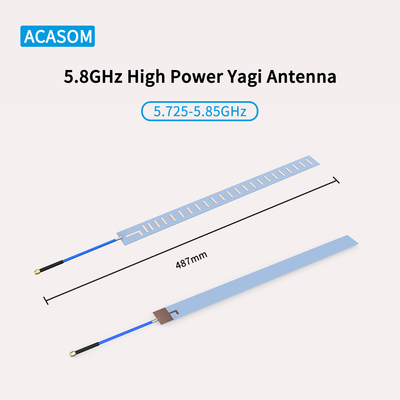

5.8GHz Yagi Antenna For Drone Blocker, High Power 50W, High Gain Antenna
Frequency:5.725GHz-5.85GHz
RFIN POWER : 47dBm(50W)
ACASOM accept customizing the Frequency you need!
1 Since the antenna is soft, please fix it
2 Since the power of the amplifier is relatively large, please connect
the connector better and then supply power to the module.
3 Antenna should be screwed first, then plug the power adapter
